• Country
• United States of America (USA)

• Manufacturer / Brand
• Roland Radio Corporation; Mount Vernon (NY)

• Year
• 1959 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 241533

• Number of Tubes
• 5

• Valves / Tubes

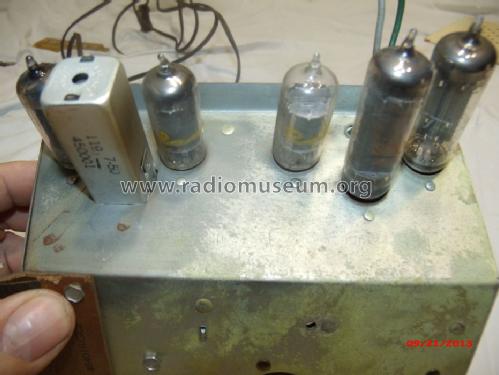

• 12BE6 12BA6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Record Changer 41-781 - Roland Radio Corporation;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 16 x 10 x 18 inch / 406 x 254 x 457 mm

• Notes

• 4 speed record changer.

• Net weight (2.2 lb = 1 kg)
• 21 lb 0 oz (21 lb) / 9.534 kg

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (429-15)

• Author
• Model page created by Steve McInnis. See "Data change" for further contributors.
