Rolls RJ Portable
Rolls (brand), Stevens and Sons Limited; Christchurch
- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Rolls (brand), Stevens and Sons Limited; Christchurch
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339448

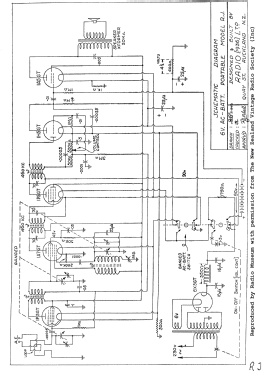

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 230 or 90 & 1.5 Volt
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Rolls RJ Portable - Rolls brand, Stevens and Sons
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 370 x 310 x 200 mm / 14.6 x 12.2 x 7.9 inch
- Notes
-
6-Valve superhet with RF stage portable broadcast (MW) receiver.
Available in Morocco Red or Green Crocodile.
Manufactured by Radio (1936) Ltd for Stevens & Sons Ltd.
See also Ultimate Model RJ.
- Mentioned in
- -- Original prospect or advert (Otago Daily Times 15 December 1948 Page 2)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
