- Country
- Great Britain (UK)
- Manufacturer / Brand
- Romac Radio Corporation, Ltd.; London
- Year
- 1947
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 18908
-
- alternative name: Romac USA

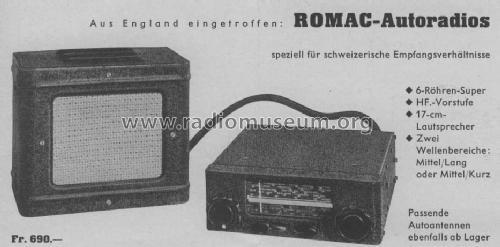

Q= prospectus
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Power out
- 2.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: 107 - Romac Radio Corporation, Ltd.;
- Notes
- Abmessungen des 2-teiligen Geräts: Empfänger: 7 × 19 × 24 cm; Verstärker und Lautsprecher: 19 × 21 × 24 cm.
- Price in first year of sale
- 6,750.00 BFr
- External source of data
- E. Erb 3-907007-36-0
- Circuit diagram reference
- Die «Thali Schemasammlung» führt das Modell.
- Other Models
-
Here you find 9 models, 8 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Romac Radio Corporation, Ltd.; London
