Stereominor L1 4+4 TTS

Roselson, Acústica Electrónica, S.L.; Barcelona

Data
Forum
Pictures
Collections

  • Year
  • 1968 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 345712

 Technical Specifications

  • Number of Tubes
  • 3
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)     6 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 125; 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 8 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereominor L1 4+4 TTS - Roselson, Acústica Electrónica
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 1140 x 700 x 380 mm / 44.9 x 27.6 x 15 inch
  • Notes

  • Roselson, Acústica Electrónica, S.A., Stereominor L1 4+4 TTS.

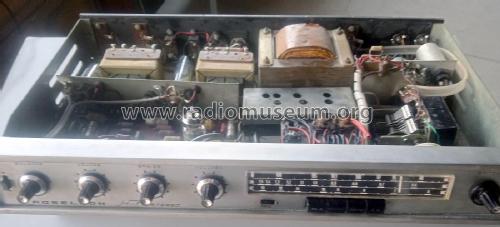

    Mueble similar al M1 4+4 TTS pero con sintonizador a transistores y amplificador estéreo a válvulas.

    Plato Garrard AT-5, con cápsula Sonotone 8TA

    Altavoces incorporados de 2 vías (8 y 3 pulgadas)

    Potencia de salida 2 x 4 W

  • Net weight (2.2 lb = 1 kg)
  • 28 kg / 61 lb 10.8 oz (61.674 lb)
  • Author
  • Model page created by Carlos Saavedra. See "Data change" for further contributors.
