• Country
• Spain

• Manufacturer / Brand
• Roselson, Acústica Electrónica, S.L.; Barcelona

• Year
• 1969 ??

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 316320

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• AF239 AF139

• Main principle
• RF Converter/Adapter (not voltage converter); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Powered by external power supply or a main unit. / DC: 12 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: UHF Selector de Canales - Channel Selector / Tuner RU /69-T - Roselson, Acústica Electrónica

• Shape
• Chassis only or for «building in»

• Notes

• Roselson, Acústica Electrónica S.L. Sintonizador de UHF para TV RU /69T

  Sintonizador de UHF con transistores de silicio



• Literature/Schematics (1)

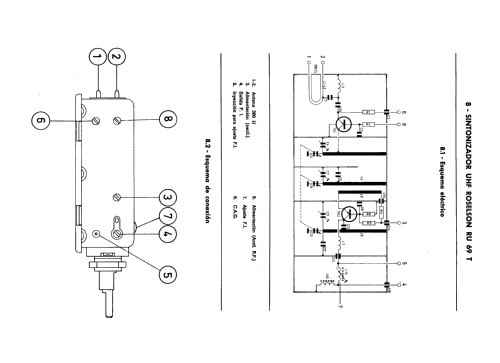

• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
