• Country
• Germany

• Manufacturer / Brand
• Rosita, Theo Schmitz GmbH (Audion); Paderborn

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26595

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC83 EM87 ECLL800 ECLL800

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

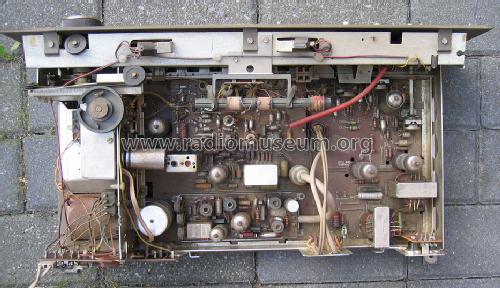

• Model: Diamant 67 Stereo Ch= 8034 - Rosita, Theo Schmitz GmbH

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1450 x 780 x 380 mm / 57.1 x 30.7 x 15 inch

• Notes
• Dioden: 2× AA113.
  Rundfunk-Chassis = 8034, Stereo-Decoder 6 nachrüstbar, Stereo-NF-Verstärker mit 2 Endstufen je 7 W;
  Phono-Chassis = Dual 1010.

• Net weight (2.2 lb = 1 kg)
• 64 kg / 140 lb 15.5 oz (140.969 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967 / Radiokatalog Band 2, Ernst Erb
