• Country
• Germany

• Manufacturer / Brand
• Rosita, Theo Schmitz GmbH (Audion); Paderborn

• Year
• 1976–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124735

• Number of Transistors
• 25

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• from Radiomuseum.org

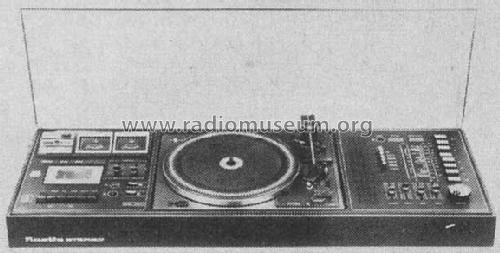

• Model: KL2600 - Rosita, Theo Schmitz GmbH

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 970 x 0 x 360 mm / 38.2 x 0 x 14.2 inch

• Notes
• ICs: 4.

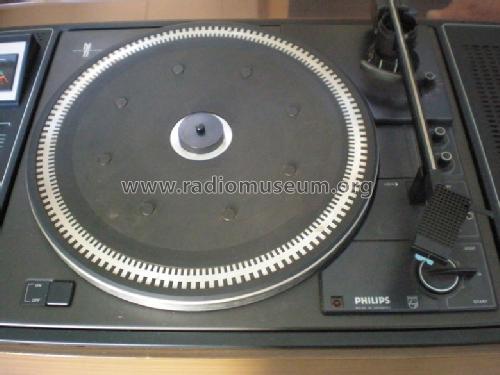

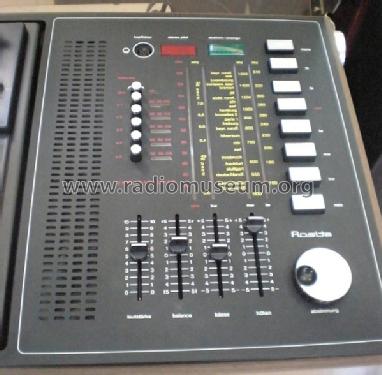

  HiFi-Stereo-Empfangsteil Rosita-Exklusiv-Chassis F913, Ausgangsleistung 2× 30 W (Sinus); Plattenwechsler Philips GC006; Rosita-Exklusiv-Cassetten-Deck R795.

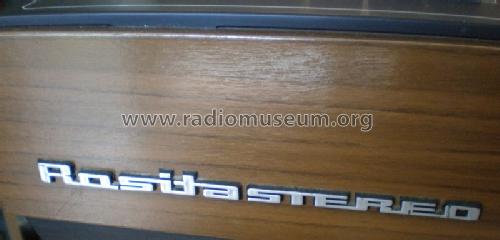

  Gehäuse nussbaumfarbig hell, anthrazit oder Schleiflack weiss.

• Source of data
• Handbuch VDRG 1977/1978

• Mentioned in
• Handbuch VDRG 1976/1977

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
