• Country
• Germany

• Manufacturer / Brand
• Rosita, Theo Schmitz GmbH (Audion); Paderborn

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24032

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84a EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 155; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

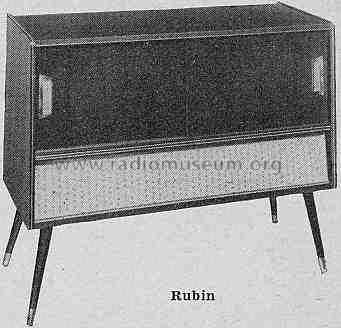

• Model: Rubin Ch= 231 - Rosita, Theo Schmitz GmbH

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 980 x 750 x 400 mm / 38.6 x 29.5 x 15.7 inch

• Notes
• Rundfunk-Chassis = Wega 231;
  Phono-Chassis = Telefunken TW504.

• Net weight (2.2 lb = 1 kg)
• 32 kg / 70 lb 7.8 oz (70.485 lb)

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 2, Ernst Erb
