• Country
• Germany

• Manufacturer / Brand
• Rosita, Theo Schmitz GmbH (Audion); Paderborn

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 246512

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84 ELL80 EZ80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

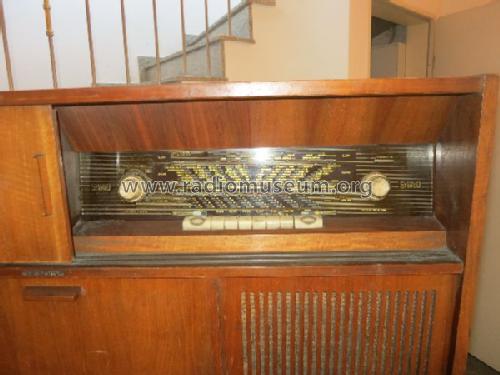

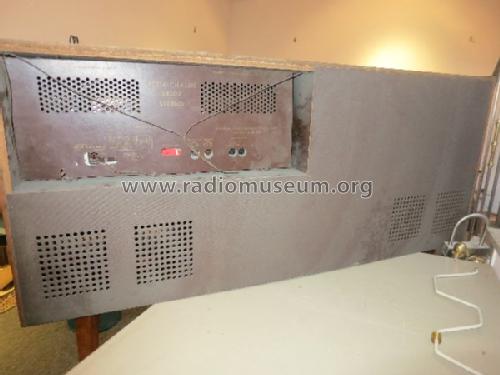

• Model: Unbekannt Ch= 24502 - Rosita, Theo Schmitz GmbH

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1210 x 800 x 380 mm / 47.6 x 31.5 x 15 inch

• Notes

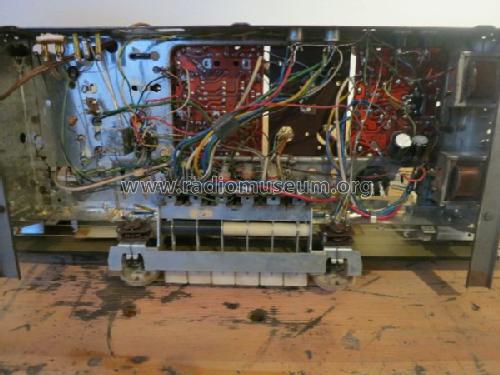

• Rundfunk-Spezial-Chassis = 24502, Stereo-NF-Verstärker mit 2 Endstufen je 2,5 W;
  Phono Chassis = DUAL 1007A.
  Hersteller Chassis: Körting für Rosita.

  Siehe auch Rosita Rubin 63 Stereo mit Chassis 24501.

• Author
• Model page created by Michael Poitner. See "Data change" for further contributors.
