• Country
• Germany

• Manufacturer / Brand
• Rosita, Theo Schmitz GmbH (Audion); Paderborn

• Year
• 1975/1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 134192

• Number of Transistors
• 25

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     15 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 12 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

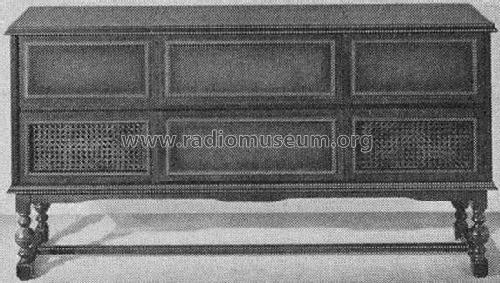

• Model: Worms-Luxus Ch= 9075 - Rosita, Theo Schmitz GmbH

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1530 x 830 x 400 mm / 60.2 x 32.7 x 15.7 inch

• Notes
• Rosita Stereo-Musiktruhe Worms-Luxus.
  Rundfunk-Chassis = Grundig 9075; Ausgangsleistung: 2× 6 W (Sinus);
  Phono-Chassis = Dual 1220 mit Kristallsystem.

• Net weight (2.2 lb = 1 kg)
• 73 kg / 160 lb 12.7 oz (160.793 lb)

• Source of data
• Handbuch VDRG 1975/1976

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
