• Country
• Germany

• Manufacturer / Brand
• Rostocker Gerätebau; Rostock (Ostd.)

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 114363

• • alternative name: VEB(K) REG Rostocker Elektro-Gerätebau

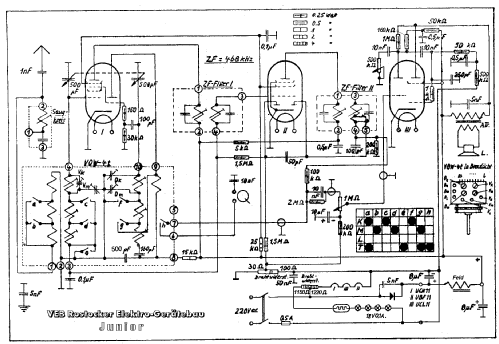

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• UCH11 UBF11 UCL11

• Number of Transistors

• Semiconductors
• Selengleichrichter

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Junior - Rostocker Gerätebau; Rostock

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 525 x 330 x 225 mm / 20.7 x 13 x 8.9 inch

• Notes

• Superspulensatz SSp136 mit Bandfiltern von GN.

• Net weight (2.2 lb = 1 kg)
• 7.9 kg / 17 lb 6.4 oz (17.401 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
