AM/FM Stereo Receiver RX-2001

Rotel, The, Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1979
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 307606

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120 or 220 or 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 150 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: AM/FM Stereo Receiver RX-2001 - Rotel, The, Co., Ltd.; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 483 x 170 x 342 mm / 19 x 6.7 x 13.5 inch
  • Notes

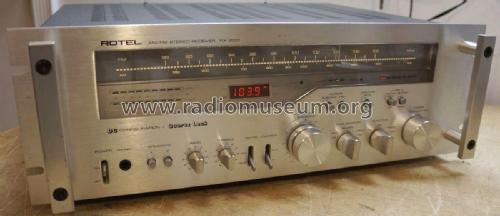

  • A Stereo Hi-Fi Receiver with a MW/VHF Tuner and a 2 x 75 watt Amplifier. Rotary controls for Bass, Treble, Volume/Balance, Tape Monitor, Function (Phono, FM, AM and Aux) and Tuning. Switches/Buttons for Power, Speakers (A & B), Audio Muting, Loudness, Subsonic Filter, High Filter, Indicator Sensitivity, FM Muting and FM De-Emphasis. Left and Right Peak Power indicators, Lock and Stereo Indicators (FM only), FM Centre Tuning indicators and Signal Strength indicators. DC Configuration/Quartz Lock. Analogue dial and Digital Frequency display. Jack for Headphones.

    Continuous Power Output :
    75 watts per channel, min. RMS both channels driven at 8 ohms or
    80 watts per channel, min. RMS both channels driven at 4 ohms
    from 20Hz to 20kHz with no more than 0.03% Total Harmonic Distortion

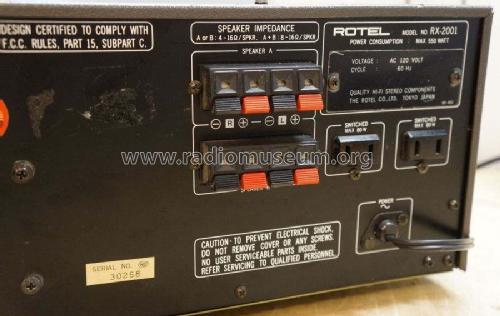

    Speaker load impedances :  A or B: 4 - 16Ω,  A + B: 8 - 16Ω
    Headphone load impedance : 4 - 16Ω
    Damping Factor :  50 (1 kHz)

    Versions/Power Requirements
    120 V AC 60Hz
    220 V AC 50Hz
    240 V AC 50Hz
    120/220/240 V AC 50/60Hz

  • Net weight (2.2 lb = 1 kg)
  • 16 kg / 35 lb 3.9 oz (35.242 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Technical Manual RX-2001 & RX-2002 dated 7908)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Owner's Manual RX-2001)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
