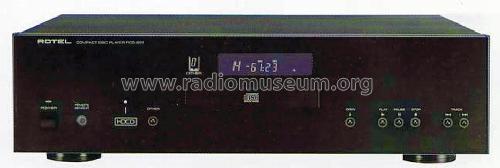

Compact Disc Player RCD-991

Rotel, The, Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1998
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 162886

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player RCD-991 - Rotel, The, Co., Ltd.; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 122 x 363 mm / 17.3 x 4.8 x 14.3 inch
  • Notes

  • A hifi stereo compact disc player with wireless remote control (RR-D91). Will also play HDCD (High Definition Compatible Digital) compact discs automatically. With Dither feature. With both balanced XLR connectors and RCA phono sockets for Line Output, Optical and Coax Digital Output sockets with a digital output on/off switch and an AC outlet.

    Specification
    Total Harmonic Distortion + Noise 0.0035 % @1KHz
    Intermodulation Distortion 0.0035 % @1KHz
    Frequency Response (±0.5dB) 5 - 20,000 Hz
    Channel Balance ± 0.5 dB
    Phase Linearity ± 0.5 degree
    Channel Separation > 110 dB@1KHz
    Signal to Noise Ratio > 115 dB
    Dynamic Range > 100 dB
    Digital to Analog Converters Dual 20 Bit
    Digital Filter 20 Bit, 8x oversampling
    Linearity (without dither) ± 1.0 dB@-90 dB
    Linearity (with dither, 1-7) ± 0.5 dB@-90 dB
    Speed Accuracy, Wow & Flutter  Quartz Crystal Precision
    Analog Output Impedance 120 Ohms
    Analog Output Level 2 Volts
    Digital Load Impedance 75 Ohms
    Digital Output Level 0.5 Volt, Peak to Peak

    Versions/Power requirements
    120V AC 60Hz
    220-240V AC 50Hz

    Power Consumption:  20 Watts

  • Net weight (2.2 lb = 1 kg)
  • 7.7 kg / 16 lb 15.4 oz (16.96 lb)
  • Price in first year of sale
  • 1,300.00 $
  • Mentioned in
  • -- Original prospect or advert (RCD-991 Brochure)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Owner's manual RCD-991)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Technical manual RCD-991)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
