• Country
• Japan

• Manufacturer / Brand
• Rotel, The, Co., Ltd.; Tokyo

• Year
• 2003

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 264338

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 80 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Integrated Amplifier RA-01 - Rotel, The, Co., Ltd.; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 435 x 72 x 342 mm / 17.1 x 2.8 x 13.5 inch

• Notes

• Rotel Stereo Integrated Amplifier Model RA-01.
  Power output: 40 watts per channel into 8Ω (stereo)
  Frequency response: 10 to 40000Hz
  Total harmonic distortion: 0.03%
  Damping factor: 180
  Input sensitivity: 2.5mV (MM), 150mV (line)
  Signal to noise ratio: 80dB (MM), 100dB (line)
  Output: 1V (Pre out)
  Phono IN, Tuner IN, CD IN, AUX1 IN, AUX2 IN
  Bass-, Treble- & Tone Control
  Speakers A, B, A+B
  Power Requirements:
  USA Version - 115V AC, 60Hz
  European Version - 230V AC, 50Hz
  Available in Black and in Silver


• Net weight (2.2 lb = 1 kg)
• 5.9 kg / 12 lb 15.9 oz (12.996 lb)

• Price in first year of sale
• 349.00 $

• Mentioned in

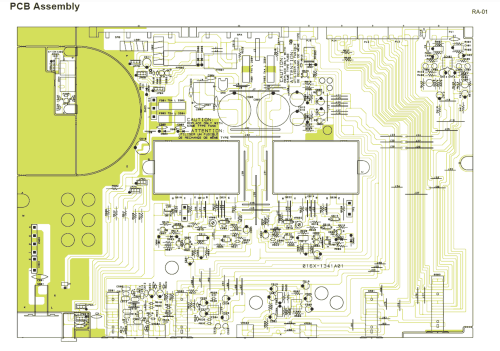

• -- Original-techn. papers. (Service Manual)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
