Stereo DC Integrated Amplifier RA-1000

Rotel, The, Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1980 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 264376

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 80 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo DC Integrated Amplifier RA-1000 - Rotel, The, Co., Ltd.; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 98 x 290 mm / 16.9 x 3.9 x 11.4 inch
  • Notes

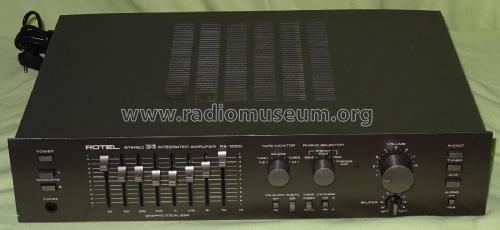

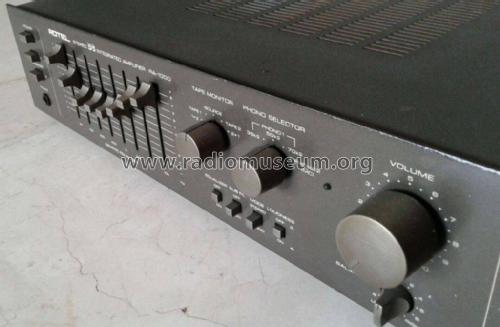

  • Rotel Stereo Integrated DC Amplifier Model RA-1000.
    Bass - & Treble Control, Loudness, Subsonic Filter, Speakers A, B

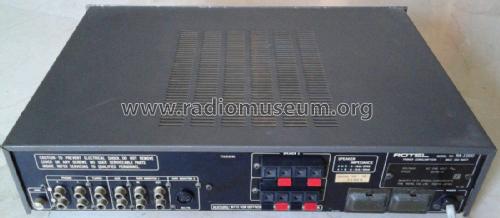

    Phono1 IN, Phono2 IN, Tuner IN, AUX IN, Tape Monitor 1, 2

    Specification
    Power output: 40 watts RMS per channel into 8Ω (stereo)
    Frequency response: 5 - 70000Hz +0dB, -1dB
    Total harmonic distortion: < 0.03%
    Graphic Equalizer (40, 100, 200, 400, 1000, 2500, 5000, 10000Hz, +/-12dB)
    Damping factor: 50 (20 - 20000Hz, 8 Ω )
    Input sensitivity: 0.12mV (MC), 2.5mV (MM), 150mV (line)
    Signal to noise ratio: 65dB (MC), 75dB (MM), 90dB (line)

    Versions/Power Requirements:
    120V AC 60Hz
    220V AC 50Hz
    240V AC 50Hz
    120, 220, 240V AC 50/60Hz with voltage selector (behind the name plate)

    Power Consumption max. 300 Watts

  • Net weight (2.2 lb = 1 kg)
  • 7.1 kg / 15 lb 10.2 oz (15.639 lb)
  • Mentioned in
  • - - Manufacturers Literature (Owner's Manual RA-1000)
  • Literature/Schematics (1)
  • Technical manual RA-1000 dated 1980-04-10
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
