Synthesizer LW/MW/FM Stereo Tuner RT-840L

Roland Electronics Co. Ltd., Rotel; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1982
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 308330

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop; ZF/IF 450/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Synthesizer LW/MW/FM Stereo Tuner RT-840L - Roland Electronics Co. Ltd.,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 66 x 304 mm / 16.9 x 2.6 x 12 inch
  • Notes

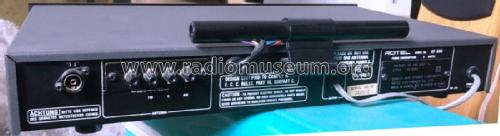

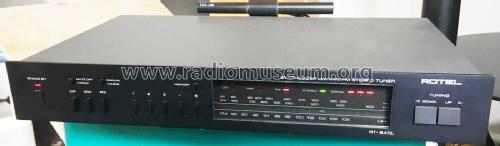

  • A synthesizer AM/FM stereo hi-fi tuner covering LW, MW and FM with a digital frequency display. Press buttons for Standby, Mute Off/Mono, FM Manual Tuning, Memory, LW, MW, FM, Tuning Down and Tuning Up, five preset buttons to retrieve stored radio stations, indicators for LW, MW, FM, FM Stereo and 3 LED Signal Strength indicators. An adjustable AM ferrite bar antenna on the back, connections for AM and FM antennae, Line Output interconnect cable with phono plugs.

    Specification
    FM Tuner Section
    Usable Sensitivity (mono) 10.8dBf/1.9µV
    50dB Quieting Sensitivity Mono   15dBf/3.2µV
    Stereo  38dBf/45µV
    Signal-to-Noise Ratio  (at 65dBf) Mono    70dB
    Stereo  65dB
    Distortion (at 65dBf) 1 kHz 0.15% (mono), 0.6% (stereo)
    Frequency Response 10-14,000Hz ,+1.5dB, -1.5dB
    Capture Ratio 1.5dB
    Alternate Channel Selectivity (±400kHz) 60dB
    Spurious Response Rejection 78dB
    Image Response Ratio 60dB
    IF Response Ratio 75dB
    AM Suppression Ratio 50dB
    Stereo Separation 100Hz/1kHz/10kHz,
    35dB/45dB/35dB)
    Antenna 300Ω balanced, 75Ω unbalanced
    AM Tuner Section
    Sensitivity MW: 300µV/m, LW: 800µV/m
    Selectivity  30dB
    Signal-to-Noise Ratio 50dB
    Image Response Ratio MW: 38dB, LW: 46dB
    IF Response Ratio MW: 35dB, LW: 38dB
    Antenna Built-in ferrite loopstick antenna

    Versions/Power Requirements
    220 V AC 50Hz
    240 V AC 50Hz

    Power consumption :   8 watts

    Similar to the Rotel RT-840 AM/FM model which does not have LW.

  • Net weight (2.2 lb = 1 kg)
  • 3.1 kg / 6 lb 13.3 oz (6.828 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Technical Manual for the RT-840 and RT-840L tuners dated Aug 82)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Owner's Manual for the RT-840 and RT-840L)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
