• Country
• Belgium

• Manufacturer / Brand
• Royal Record (brand), Radio-Transactions - see also RBC

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 284136

• Number of Tubes
• 5

• Valves / Tubes
• 2A7 58 2A6 2A5 80S

• Main principle
• Superheterodyne (common); ZF/IF 125 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch

• Material
• Wooden case

• from Radiomuseum.org

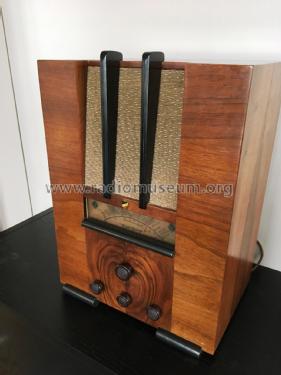

• Model: Vedette 936 - Royal Record brand, Radio-

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 360 x 480 x 250 mm / 14.2 x 18.9 x 9.8 inch

• Price in first year of sale
• 1,790.00 BEF

• Mentioned in
• -- Original prospect or advert (Le Sud, 30.06.1935)
