- Country
- Yugoslavia
- Manufacturer / Brand
- RR Zavodi (Radio Röntgen), Заводи РР Ниш; Niš - see also Ei
- Year
- 1959 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 189424
-
- Brand: RR Niš

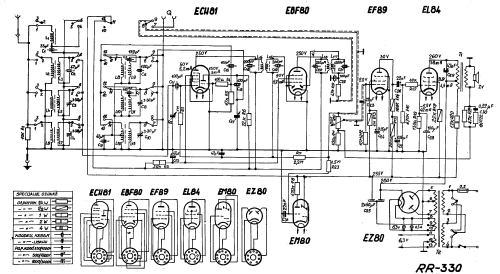

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: RR-330 - RR Zavodi Radio Röntgen, Завод
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 320 x 300 x 210 mm / 12.6 x 11.8 x 8.3 inch
- Net weight (2.2 lb = 1 kg)
- 11.2 kg / 24 lb 10.7 oz (24.67 lb)
- Author
- Model page created by Zlatan Mumlek. See "Data change" for further contributors.
- Other Models
-
Here you find 39 models, 36 with images and 23 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RR Zavodi (Radio Röntgen), Заводи РР Ниш; Niš - see also Ei
