• Country
• Belgium

• Manufacturer / Brand
• RR Radio (R.R. Radio); Bruxelles, Anderlecht

• Year
• 1950 ?

• Category
• Antenna (Aerial) or Coupler

• Radiomuseum.org ID
• 260789

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• UF41 UY41

• Main principle
• RF-Circuit or wave trap (separate, can also be an antenna with amp.)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case

• from Radiomuseum.org

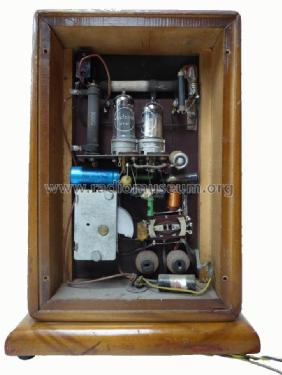

• Model: Antenne Cadre - RR Radio R.R. Radio; Bruxelles

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 200 x 300 x 80 mm / 7.9 x 11.8 x 3.1 inch

• Notes

• Sélecteur de bobines: GO, PO et OC.

• Author
• Model page created by Etienne Flemal. See "Data change" for further contributors.

• Other Models

• Here you find 111 models, 60 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
