Super-Écran 335 Meuble

RR Radio (R.R. Radio); Bruxelles, Anderlecht

Data
Forum
Pictures
Collections

  • Year
  • 1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 238034

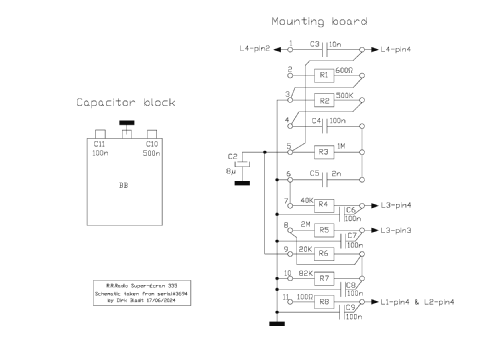

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF without regeneration; 1 AF stage(s); Anode bend detection
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Super-Écran 335 [Meuble] - RR Radio R.R. Radio; Bruxelles
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • There are 5 variants of this type:
    • The variant Combiné has a standard casing and a simple 0 - 100 tuning scale without names.
    • The variant Série "L" has a polished mahogany casing and a 0 - 100 tuning scale with transmitter names.
    • The variant Standard is the only one without an internal loudspeaker. A separate Electro Magnetic Dynamic speaker was available at 450 BFr. This variant has a standard casing and a simple 0 - 100 tuning scale without names.
    • The variant Meuble is the console version in polished mahogany, a 0 - 100 tuning scale with transmitter names and a tone control.
    • The variant Phono-Radio is the console version  in polished mahogany, a 0 - 100 tuning scale with transmitter names, a tone control and a turntable.
    All variants have a Pick-up connector.
    Tubes: 3 screen-grid tubes, 1 pentode, 1 rectifier; types not yet known.
  • Price in first year of sale
  • 2,875.00 BFr
  • Mentioned in
  • -- Original prospect or advert
