• Country
• Denmark

• Manufacturer / Brand
• RTC (Scandinavian Radio Television Company A/S); Copenhagen

• Year
• 1941 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 275202

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH11 EBF11 EF12 CL4 EM4 CY1

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

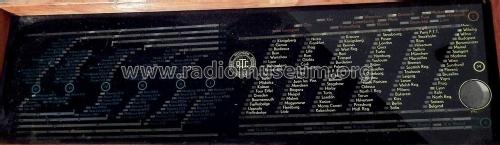

• Model: SA425 - RTC Scandinavian Radio

• Shape
• Console, Lowboy (legs < 50 %).

• Author
• Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
