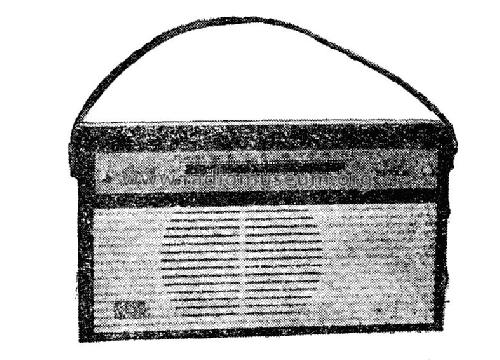

Xuri 旭日 CY-501
Chengdu No.1 成都无线电一厂 Chengdu No.1 Radio Factory; Chengdu
- Country
- People's Republic of China
- Manufacturer / Brand
- Chengdu No.1 成都无线电一厂 Chengdu No.1 Radio Factory; Chengdu
- Year
- 1969–1975
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174489
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s); Reflex
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 4.5 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Xuri 旭日 CY-501 - Chengdu No.1 成都无线电一厂
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 233 x 130 x 56 mm / 9.2 x 5.1 x 2.2 inch
- Notes
- The model Xuri 旭日 CY-501 was produced from 1969 up to 1975. The latest models had some changes.
- Literature/Schematics (1)
- 01-Transistor Radio Manual 1972, 2nd Ed. 2nd Print 1983 (page 101.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
