• Country
• United States of America (USA)

• Manufacturer / Brand
• Rycom Instruments, Raytown

• Year
• 1965

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 150138

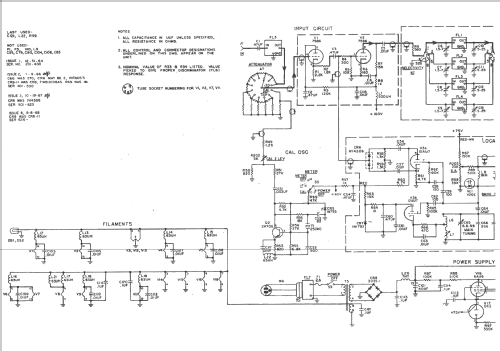

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 7586 7586 12AU7 12AU7 12AU7 6BH6 6BH6 6CW4 6CW4 6AW8 7360 6AQ5 6AQ5 6AU6 6080 0C2

• Number of Transistors
• 1

• Semiconductors
• 2N706

• Main principle
• Superhet with RF-stage; ZF/IF 2215 kHz; 2 AF stage(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 225 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.15 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Receiver R1307A/GR - Rycom Instruments, Raytown

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 19 x 8 x 15 inch / 483 x 203 x 381 mm

• Notes
• The Receiver covers the frequency range of 3KC to 810KC in five bands. The Receiver circuitry has provisions for demodulating most types of signal: Amplitude modulation detector, product detector and a limiter-frequency discriminator. The local oscillator frequency can be controlled by the application of an external DC voltage.

• Net weight (2.2 lb = 1 kg)
• 22 kg / 48 lb 7.3 oz (48.458 lb)

• Author
• Model page created by Alexander Küffer. See "Data change" for further contributors.
