2-Band Radio Cassette Recorder RCR520
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1984/1985
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 178446
-
- Brand: Schwer & Söhne, GmbH
- - Manufacturers Literature
Q: Saba, Service-Unterlagen

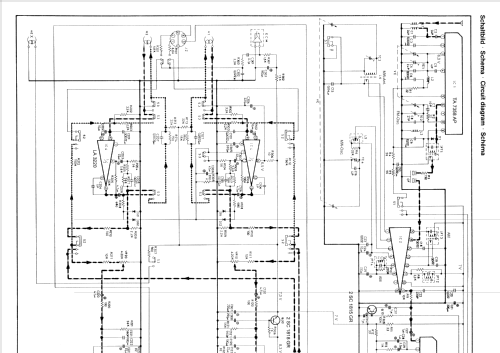

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220 / 4 x 1,5 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 6 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 2-Band Radio Cassette Recorder RCR520 - SABA; Villingen
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 355 x 150 x 80 mm / 14 x 5.9 x 3.1 inch
- Notes
- Saba 2-Band Radio Cassette Recorder RCR 520; Stereo.
- Net weight (2.2 lb = 1 kg)
- 1.750 kg / 3 lb 13.7 oz (3.855 lb)
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by a member from A. See "Data change" for further contributors.
