• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25534

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• EC92 EC92 ECH81 EF85 EM84 EABC80 EABC80 ECL80 ECL86 ECL86

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 3000 Automatic Stereo 11 - SABA; Villingen

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1670 x 885 x 465 mm / 65.7 x 34.8 x 18.3 inch

• Notes
• Techn. Daten = Breisgau 11, Chassis = 300 Automatic Stereo 11; FM-ZF=6.75 MHz..
  Abgleich (auch Steuerfilter)

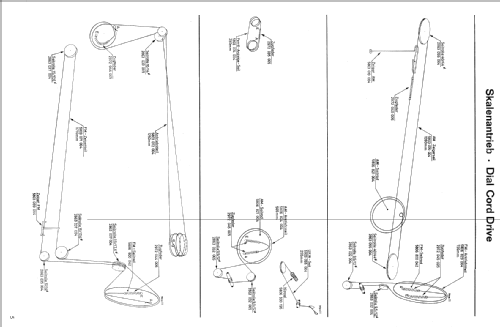

  Alignment (also automatic filter)

• Net weight (2.2 lb = 1 kg)
• 115 kg / 253 lb 4.9 oz (253.304 lb)

• Source of data
• -- Schematic
