• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6665

• • Brand: Schwer & Söhne, GmbH

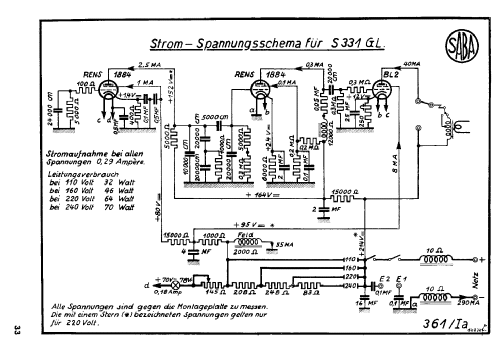

Click on the schematic thumbnail to request the schematic as a free document.

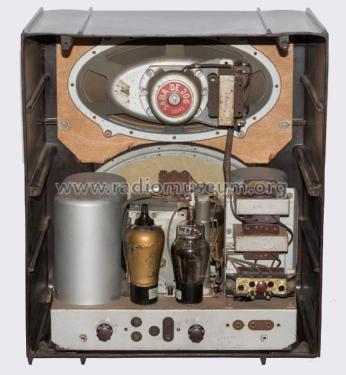

• Number of Tubes
• 3

• Valves / Tubes
• RENS1884 RENS1884 BL2

• Main principle
• TRF with regeneration; 1 Special; 1 AF stage(s); Super, reaction, but not adjustable

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Direct Current supply (DC) / 110; 160; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 331GL-P [Pressstoffgehäuse] - SABA; Villingen

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 370 x 420 x 270 mm / 14.6 x 16.5 x 10.6 inch

• Price in first year of sale
• 243.00 RM

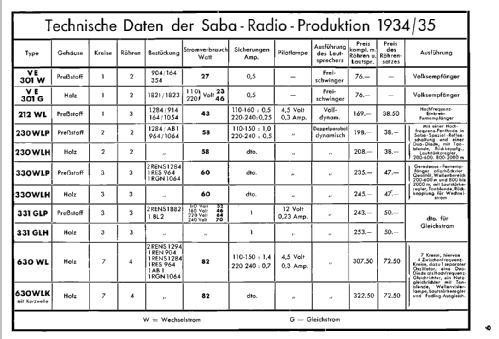

• Source of data
• Radio-Katalog, Mix & Genest Hansawerke, 1935 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• -- Schematic (OTO-Schaltungen)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 1645 models, 1503 with images and 1187 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from SABA; Villingen
