• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6666

• • Brand: Schwer & Söhne, GmbH

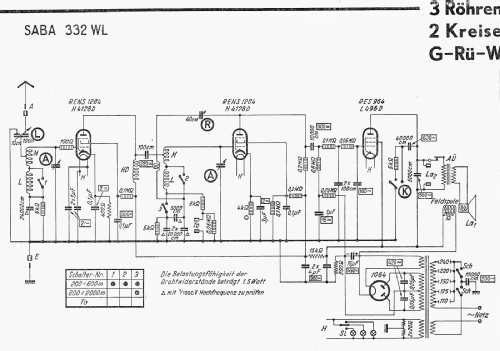

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RENS1284 RENS1284 RES964 RGN1064

• Main principle
• TRF with regeneration; 1 Special; 1 AF stage(s); Anode bend detection

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 332WL - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 340 x 280 mm / 20.5 x 13.4 x 11 inch

• Price in first year of sale
• 228.00 RM

• Source of data
• Radiokatalog Band 1, Ernst Erb

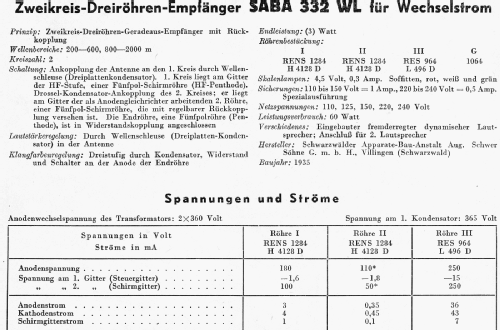

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• -- Original prospect or advert
