• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6684

• • Brand: Schwer & Söhne, GmbH

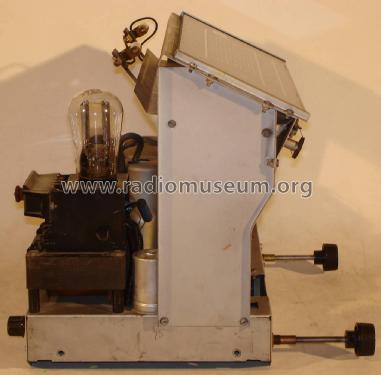

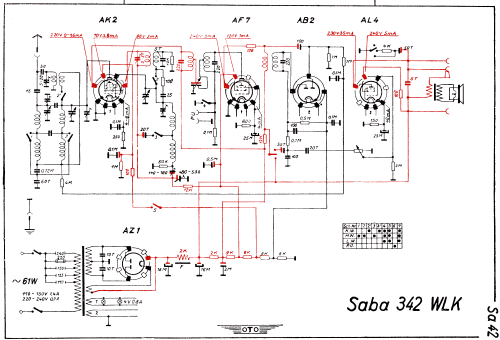

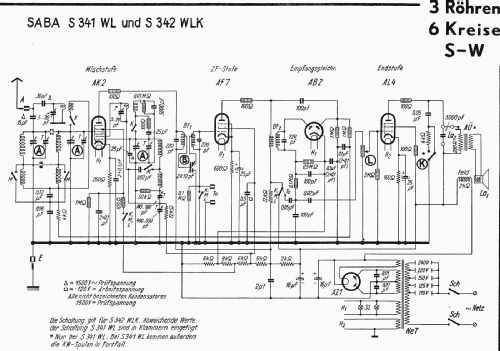

Click on the schematic thumbnail to request the schematic as a free document.

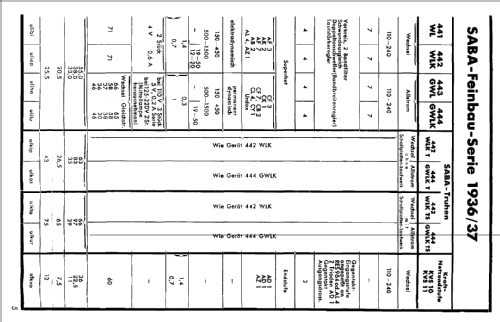

• Number of Tubes
• 5

• Valves / Tubes
• AK2 AF7 AB2 AL4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 485 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

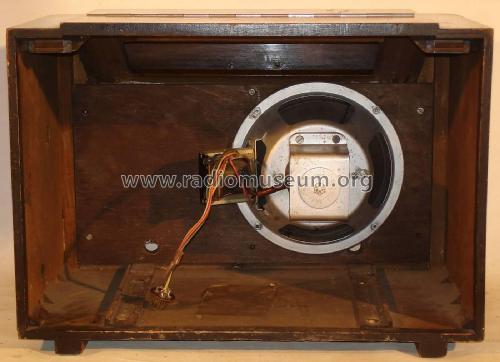

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: S-342WLK 342WLK - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 510 x 365 x 315 mm / 20.1 x 14.4 x 12.4 inch

• Notes

• Bandfiltereingang, variable Bandbreite.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Price in first year of sale
• 280.00 RM

• Source of data
• HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Technisch- Commercieel - Radio Vademecum Staleman

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• -- Schematic (OTO-Schaltungen)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
