• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6694

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RENS1204 RENS1204 RES664d RGN2004 or 1561

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 Special; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 4.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

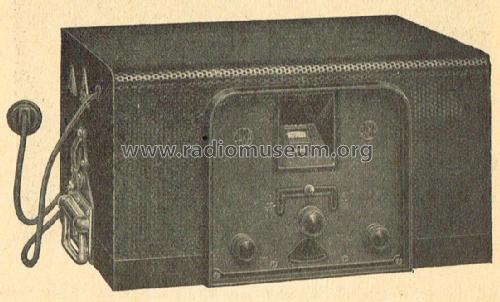

• Model: 34 - SABA; Villingen

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 440 x 230 x 310 mm / 17.3 x 9.1 x 12.2 inch

• Notes
• Fernempfänger mit Kraftverstärker. Preis ohne Röhren. Röhrensatz 90,50 Mk.

• Price in first year of sale
• 220.00 RM +

• Source of data
• Radio-Schnorr-Katalog Nr.53 1931/32 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Mentioned in
• Saba-Diplomarbeit
