S-357WK oder 357WKH Holzgehäuse
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6607
-
- Brand: Schwer & Söhne, GmbH

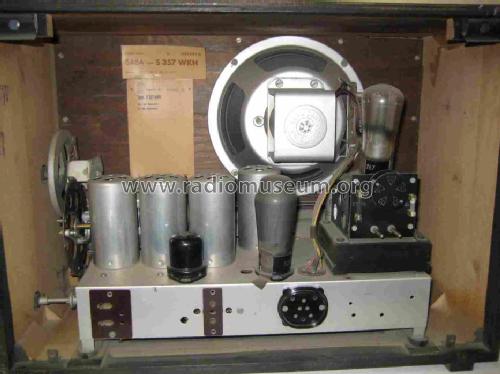

aus ebay, Verkäufer bigbigpetro
eigene Sammlung

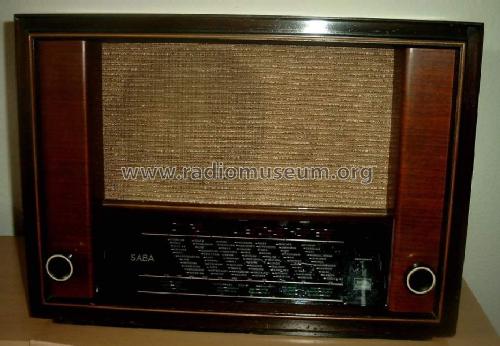

aus ebay, Verkäufer bigbigpetro

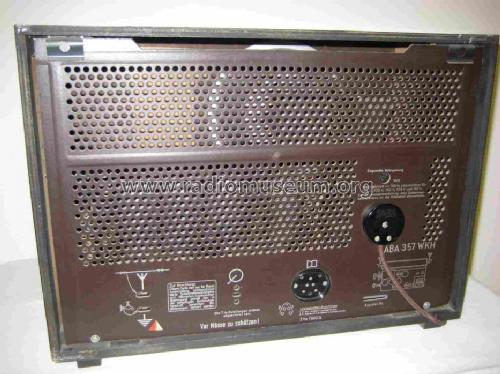

aus ebay, Verkäufer bigbigpetro

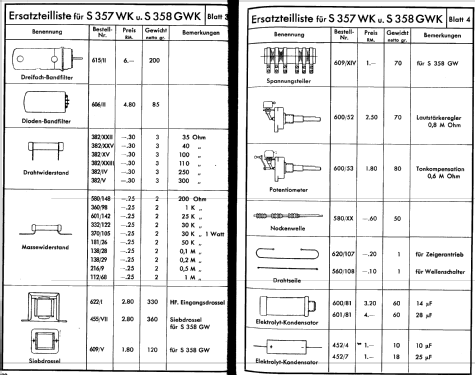

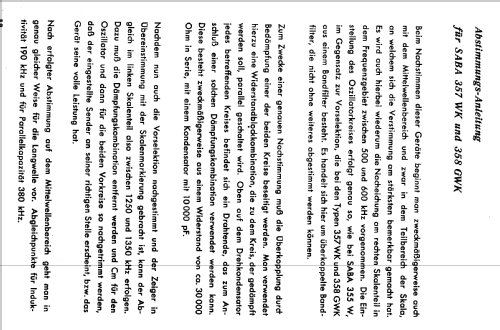

Original prospekt.
eigene Sammlung

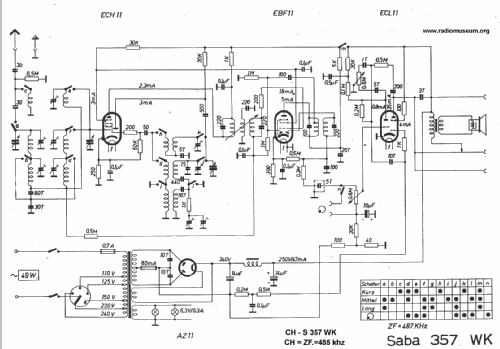

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 487 kHz
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: S-357WK oder 357WKH [Holzgehäuse] - SABA; Villingen
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 530 x 386 x 295 mm / 20.9 x 15.2 x 11.6 inch
- Notes
-
Variable Bandbreite.
Eine Liste der verwendeten Kondensatoren (Aufdruck und tatsächliche Werte) findet sich hier: Codierung Saba-Kondensatoren 1938/39
- Net weight (2.2 lb = 1 kg)
- 15.5 kg / 34 lb 2.3 oz (34.141 lb)
- Price in first year of sale
- 215.00 RM
- Source of data
- Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
