• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1940–1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6614

• • Brand: Schwer & Söhne, GmbH

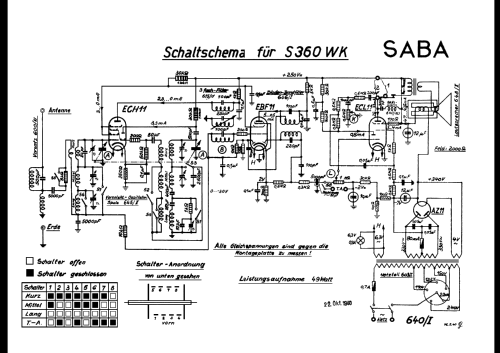

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ11

• Main principle
• Superheterodyne (common); ZF/IF 487 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: S-360WKH 360WKH [Holzgehäuse] - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 368 x 258 mm / 18.9 x 14.5 x 10.2 inch

• Notes
• Export;Ch=357

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 1645 models, 1500 with images and 1184 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
