503W
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1943/1944
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 302790
-
- Brand: Schwer & Söhne, GmbH
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 503W - SABA; Villingen
- Shape
- Tablemodel, low profile (big size).
- Notes
-

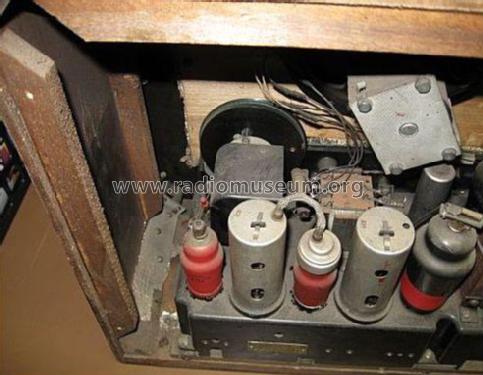

Ch= Philips A52A. Sogenanntes Verlagerungsgerät, gefertigt von Philips - Suresnes (F).
- Mentioned in
- Funkgeschichte der GFGF (Nr. 234, 235, 236 (2017))
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
