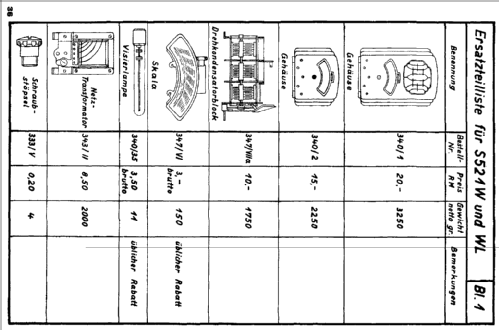

521WL
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6716
-
- Brand: Schwer & Söhne, GmbH
Blockkondensator von 1933
AF7 als Ersatz

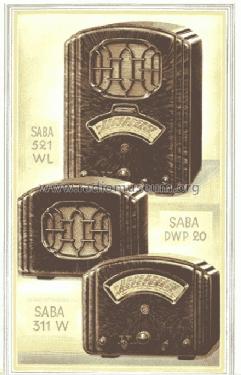

Radio-Schnorr 1934
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 125 kHz
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Material
- Bakelite case
- from Radiomuseum.org

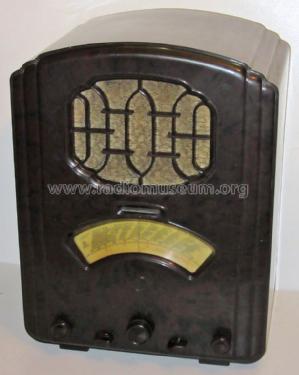

- Model: 521WL - SABA; Villingen
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 360 x 470 x 290 mm / 14.2 x 18.5 x 11.4 inch
- Notes
- Feldst.Anz.
- Price in first year of sale
- 336.00 RM
- Source of data
- Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
