• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1940–1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6618

• • Brand: Schwer & Söhne, GmbH

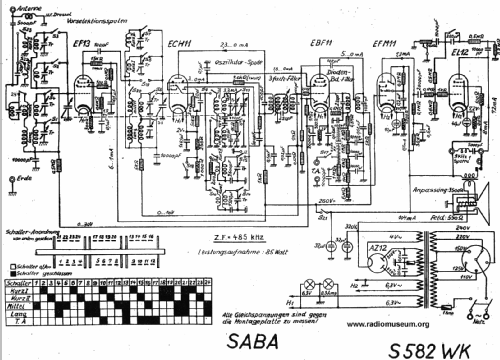

Click on the schematic thumbnail to request the schematic as a free document.

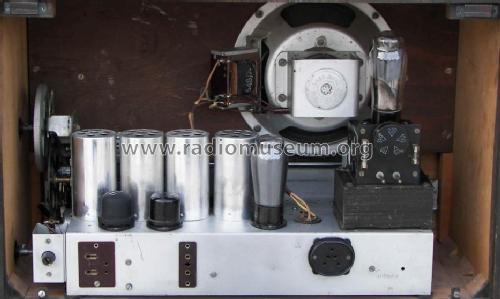

• Number of Tubes
• 6

• Valves / Tubes
• EF13 ECH11 EBF11 EL12 EFM11 AZ12

• Main principle
• Superhet with RF-stage; ZF/IF 487 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: S-582WK 582WK - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 390 x 300 mm / 22.8 x 15.4 x 11.8 inch

• Notes
• Exportmodell, Chassis = 581WK. Variable Bandbreite über ein Dreikreis-ZF-Bandfilter. KW 13 bis 92 m in zwei Bereichen. Sperrkreis

• Price in first year of sale
• 572.00 SFR

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen

• Other Models

• Here you find 1645 models, 1500 with images and 1184 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from SABA; Villingen
