90/11K
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1961/1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 99077
-
- Brand: Schwer & Söhne, GmbH

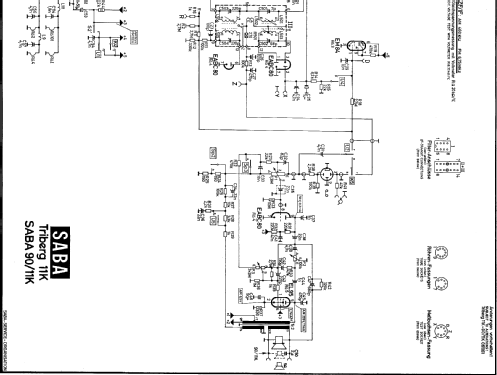

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460/6750 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 127/220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 90/11K - SABA; Villingen
- Shape

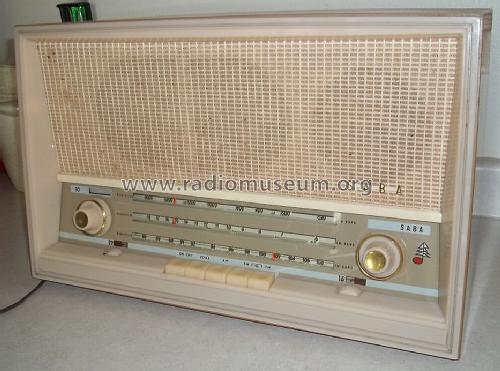

- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 450 x 280 x 225 mm / 17.7 x 11 x 8.9 inch
- Notes
- Exportmodell mit UKW-Band bis 108 MHz. Ähnlich Triberg 11, jedoch mit Exportskala ohne Sendernamen.
- Net weight (2.2 lb = 1 kg)
- 7.4 kg / 16 lb 4.8 oz (16.3 lb)
- Mentioned in

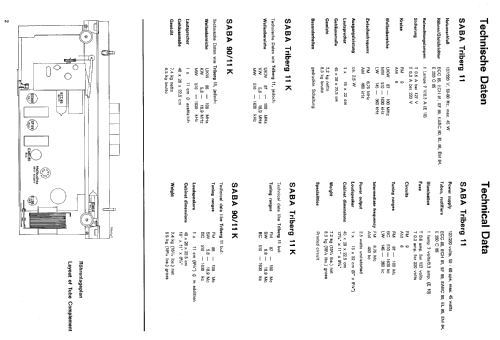

- -- Original-techn. papers.
- Author
- Model page created by Walter Groer. See "Data change" for further contributors.
