• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19591

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

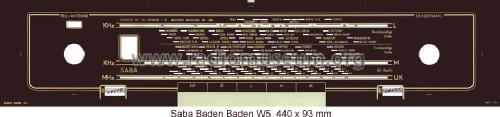

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker

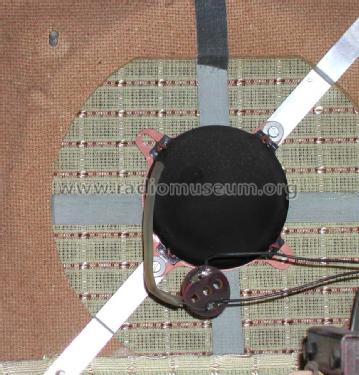

• 2 Loudspeakers

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

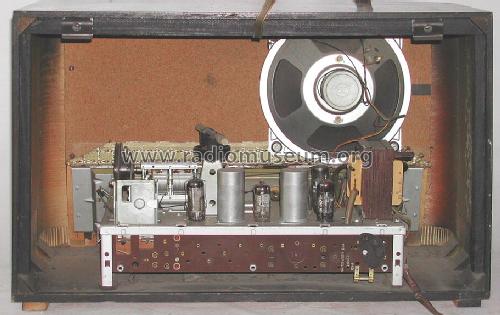

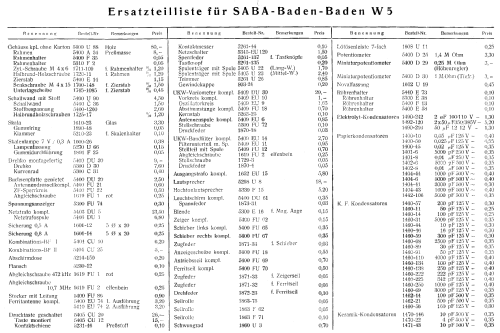

• Model: Baden-Baden W5 - SABA; Villingen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 570 x 352 x 264 mm / 22.4 x 13.9 x 10.4 inch

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 289.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55
