• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1957/1958

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 99750

• • Brand: Schwer & Söhne, GmbH

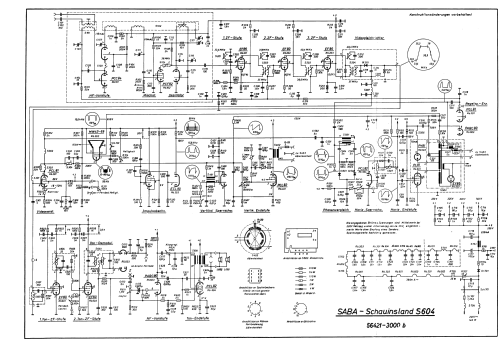

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 125; 150; 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Bodensee 7 [1957] - SABA; Villingen

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1100 x 845 x 540 mm / 43.3 x 33.3 x 21.3 inch

• Notes
• Fernseh-Chassis = Schauinsland S604;
  Rundfunk-Chassis = Freudenstadt 8;
  Phono-Chassis = Dual 1003.

• Net weight (2.2 lb = 1 kg)
• 77 kg / 169 lb 9.7 oz (169.604 lb)

• Price in first year of sale
• 1,899.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
