• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1961–1963

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 25533

• • Brand: Schwer & Söhne, GmbH

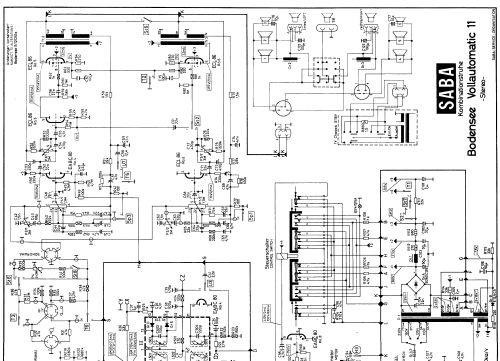

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• EC92 EC92 ECH81 EF85 EM84 EABC80 EABC80 ECL80 ECL86 ECL86

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Bodensee Vollautomatic 11V Sonorama - SABA; Villingen

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1670 x 885 x 465 mm / 65.7 x 34.8 x 18.3 inch

• Notes

• Fernseh-Chassis = Schauinsland T116V Vollautomatic;
  Rundfunk-Chassis = Meersburg Automatic 11-Stereo;
  Phono-Chassis = Dual 1008.
  Abgleich (auch Steuerfilter)
  Alignment (also automatic filter)

• Net weight (2.2 lb = 1 kg)
• 115 kg / 253 lb 4.9 oz (253.304 lb)

• Price in first year of sale
• 2,999.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62
