• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1951–1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19220

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF80 EF80 ECH42 EBF80 EM4 EB41 EF40 EL12

• Number of Transistors

• Semiconductors
• 250B100L

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 8 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 26.5 cm = 10.4 inch

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

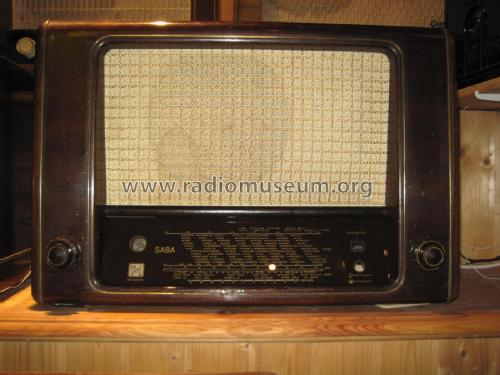

• Model: Bodensee W Export - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 620 x 420 x 259 mm / 24.4 x 16.5 x 10.2 inch

• Notes
• Geführt in Kundendienstanleitung SABA 1951/52 - siehe auch Bodensee W52 und W. Variable BBR. mit MHG Schaltung. Eingangsbandfilter in den AM Bereichen.

• Net weight (2.2 lb = 1 kg)
• 16.6 kg / 36 lb 9 oz (36.564 lb)

• Price in first year of sale
• 508.00 DM

• External source of data
• Erb

• Source of data
• Kat.d.Rundf.GrossH.1952/53
