• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20785

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• EC92 EC92 ECH81 EF89 EM34 EBF89 EF86 EL84 EABC80 ECL80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 11 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 125; 150; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

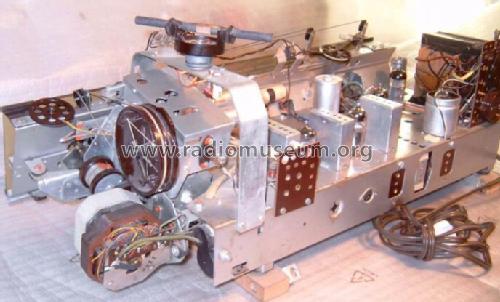

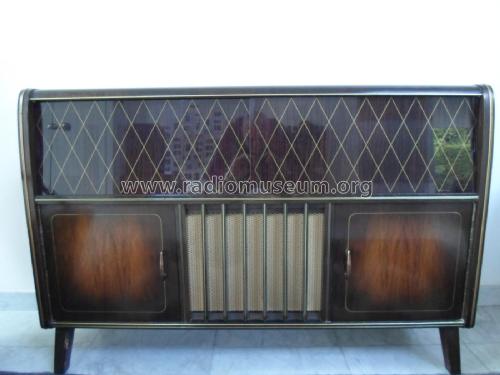

• Model: Breisgau-Automatic 7 - SABA; Villingen

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1180 x 795 x 400 mm / 46.5 x 31.3 x 15.7 inch

• Notes
• Phono-Chassis = Dual 1003..
  Abgleich (auch Steuerfilter)
  Alignment (also automatic filter)

• Net weight (2.2 lb = 1 kg)
• 45 kg / 99 lb 1.9 oz (99.119 lb)

• Price in first year of sale
• 1,099.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57
