• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25573

• • Brand: Schwer & Söhne, GmbH

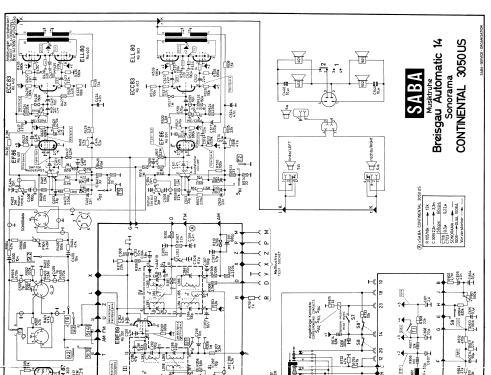

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• EC92 EC92 ECH81 EF89 EM84 EBF89 EM87 EF86 EF86 ECC83 ELL80 ELL80 EABC80 ECL80 ECC83 ECC83 EL95

• Number of Transistors
• 11

• Semiconductors
• OC306 OC306 OC306 OC306 AF126 AF126 AF126 AF126 AF126 SFT337 AC125

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 10 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player + Tape Recorder; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 115; 127; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 12 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

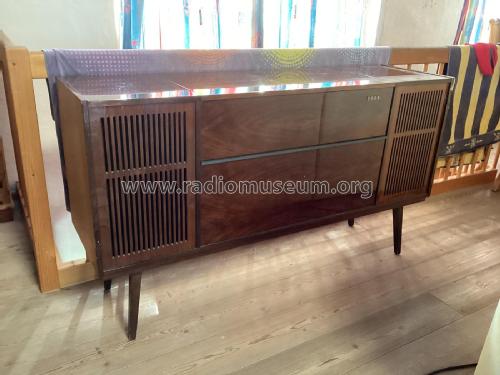

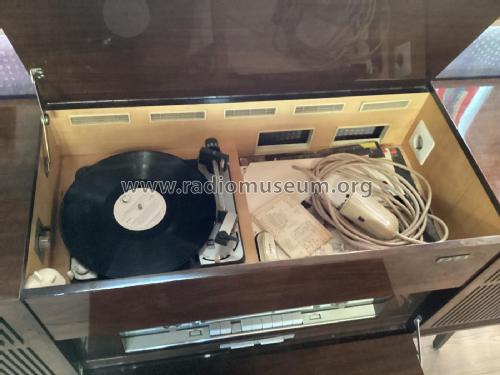

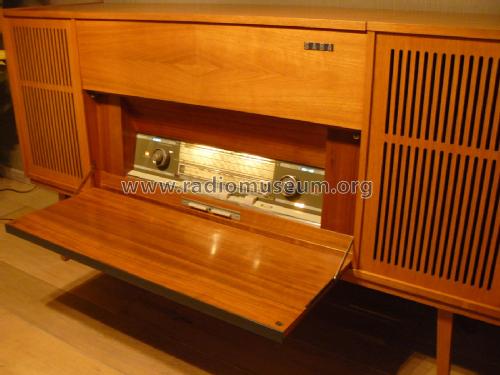

• Model: Breisgau Vollautomatic 14 Sonorama - SABA; Villingen

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1510 x 850 x 420 mm / 59.4 x 33.5 x 16.5 inch

• Notes

• Motorantrieb für Suchlauf und Scharfabstimmung, Fernbedienung, Sonorama-Nachhallgerät eingebaut.

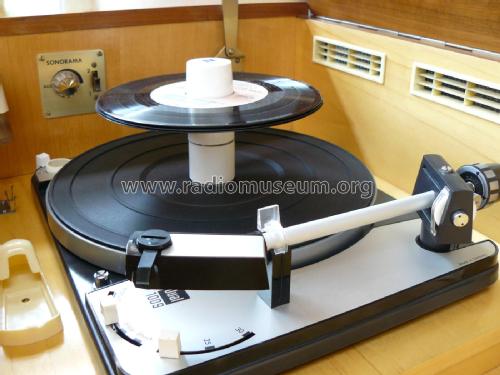

  Plattenwechsler Dual 1009 mit Magnet-System und Vorverstärker. FM-Stereo-Decoder nachrüstbar. Ähnlich wie Continental 3050US als Exportvariante..
  Abgleich (auch Steuerfilter)
  Alignment (also automatic filter)

• Net weight (2.2 lb = 1 kg)
• 80 kg / 176 lb 3.4 oz (176.211 lb)

• Price in first year of sale
• +

• Source of data
• -- Original-techn. papers.

• Other Models

• Here you find 1645 models, 1500 with images and 1184 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from SABA; Villingen
