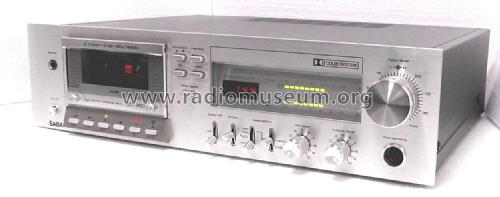

CD360
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1979 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 90172
-
- Brand: Schwer & Söhne, GmbH
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: CD360 - SABA; Villingen
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 450 x 120 x 355 mm / 17.7 x 4.7 x 14 inch
- Notes
- 2 Motoren, 2 Tonköpfe, LED-Aussteueranzeige, digitales Bandzählwerk. Anzeige in Meter oder Minuten; Memory Function Limiter / Tape; Output Level Regler;Mik Level Regler;Input Level Regler (rechts - links getrennt); Bandarten: Standard • Chrom • Metal; Frequenzgang nach DIN: 15...16000 Standard • 15...18000 Chrom • 15...20000 Metal; Ausgang : 1x Phones; Audio Aus- und Eingänge: Chinch + Dioden DIN 5 polig rückseitig; Eingänge: 1x Mikrofoneingang frontseitig Dioden DIN 5 polig,
- Net weight (2.2 lb = 1 kg)
- 8.5 kg / 18 lb 11.6 oz (18.722 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Peter Böhm. See "Data change" for further contributors.
