• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25572

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes

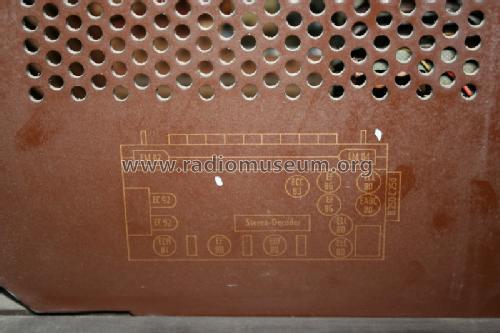

• EC92 EC92 ECH81 EF89 EM84 EBF89 EM87 EF86 EF86 ECC83 ELL80 ELL80 EABC80 ECL80

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 10 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

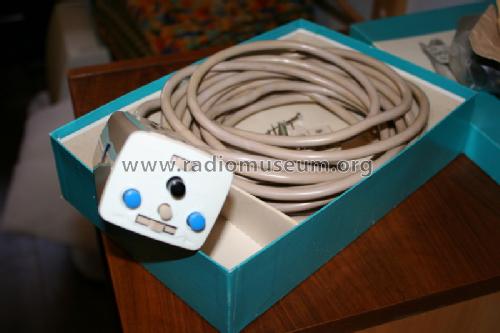

• Record Player (perh.Changer); Remote Control (with wire or wireless)

• Power type and voltage

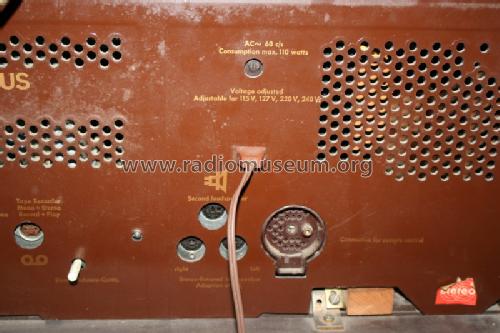

• Alternating Current supply (AC) / 115-240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

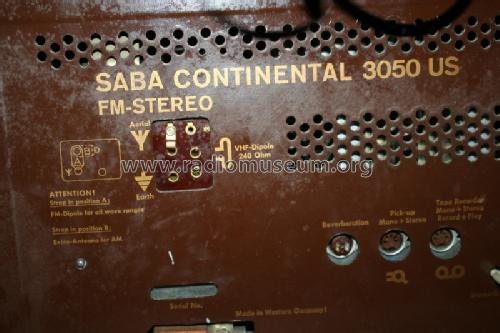

• Model: Continental Sonorama 3050US - SABA; Villingen

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1260 x 880 x 455 mm / 49.6 x 34.6 x 17.9 inch

• Notes

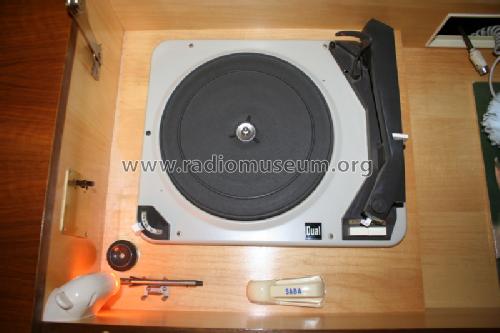

• Motor; Fernbed. Sonorama-Nachhallgerät. Pl.Wechsler DUAL 1009 mit Magnet-System und Vorverstärker. FM-Stereo-Decoder nachrüstbar. This model is made for export to the USA.

• Net weight (2.2 lb = 1 kg)
• 71 kg / 156 lb 6.2 oz (156.388 lb)

• Price in first year of sale
• +

• Source of data
• -- Original-techn. papers.
