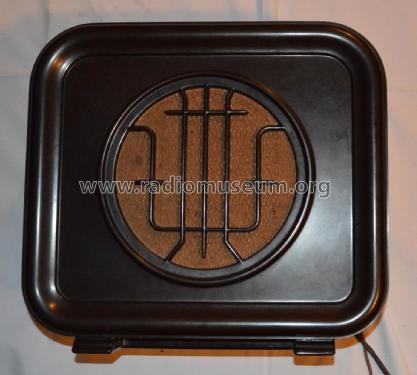

DWP31

SABA; Villingen

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
SABA; Villingen

Year
1932/1933

Category
Loudspeaker, headphone or earphone

Radiomuseum.org ID
6700

- Brand: Schwer & Söhne, GmbH

Schematics

DWP31; SABA; Villingen (ID = 65306) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 615502) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 520513) Speaker-P — SABA; Villingen DWP31 (2)
ebay 230305139597 Verkäufer zeho2

DWP31; SABA; Villingen (ID = 520512) Speaker-P — SABA; Villingen DWP31 (2)
ebay 230305139597 Verkäufer zeho2

DWP31; SABA; Villingen (ID = 156624) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 322823) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 615501) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 1262532) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 1262562) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 1262563) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 1262566) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 1262567) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 1262568) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 1358100) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 1595974) Speaker-P — SABA; Villingen DWP31 (1)
saba

DWP31; SABA; Villingen (ID = 1595975) Speaker-P — SABA; Villingen DWP31 (1)
saba

DWP31; SABA; Villingen (ID = 1595977) Speaker-P — SABA; Villingen DWP31 (1)
saba

DWP31; SABA; Villingen (ID = 1595979) Speaker-P — SABA; Villingen DWP31 (1)
saba

DWP31; SABA; Villingen (ID = 2083926) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 2193829) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 2193830) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 2193831) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 2193832) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 2663286) Speaker-P — SABA; Villingen DWP31 (2)
Q: Katalog W.Reuter 1933

DWP31; SABA; Villingen (ID = 2750181) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 2750182) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 2750183) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 2750184) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 2750185) Speaker-P — SABA; Villingen DWP31 (1)

DWP31; SABA; Villingen (ID = 3069866) Speaker-P — SABA; Villingen DWP31 (1)

Technical Specifications

Power type and voltage
Powered by external power supply or a main unit.

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

Material
Bakelite case

from Radiomuseum.org
Model: DWP31 - SABA; Villingen

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
400 x 370 x 180 mm / 15.7 x 14.6 x 7.1 inch

Notes
Fast quadratisches Gehäuse, LS-Chassis DW33. Speziell für Saba-Geräte, die den Erregerstrom für extern liefern.

Net weight (2.2 lb = 1 kg)
4.2 kg / 9 lb 4 oz (9.251 lb)

Price in first year of sale
51.00 RM

Source of data
Katalog Radio-Zentrale Prohaska 1928 / Radiokatalog Band 1, Ernst Erb

Mentioned in
Saba-Diplomarbeit (1932/33)
