• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26597

• • Brand: Schwer & Söhne, GmbH

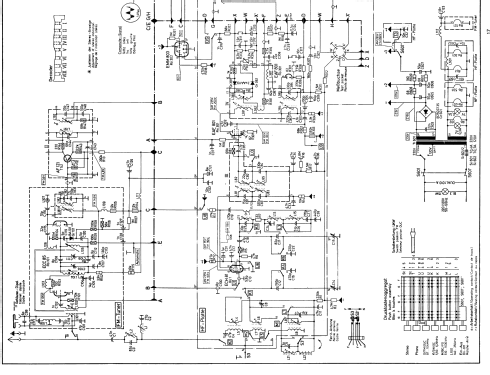

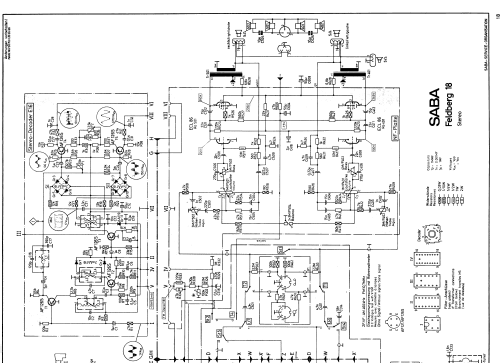

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EAF801 ECL86 EMM803 ECL86

• Number of Transistors
• 1

• Semiconductors
• AF121 BA101 AA119 AA119

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 120; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

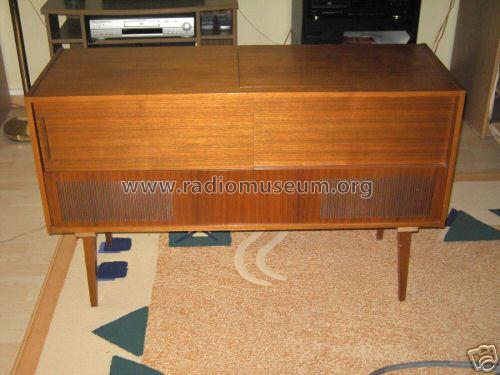

• Model: Feldberg 18 Stereo Mod. FG 18 - SABA; Villingen

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1120 x 700 x 410 mm / 44.1 x 27.6 x 16.1 inch

• Notes

• Rundfunk-Chassis = Konstanz 18, Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Endstufen je 3 W;

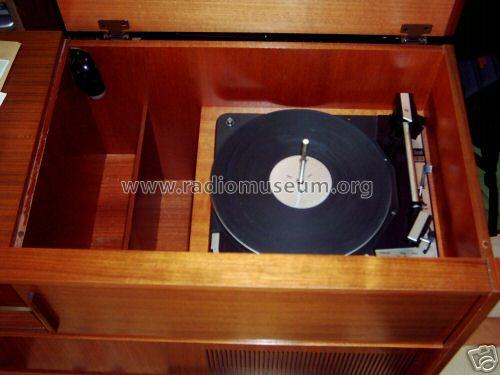

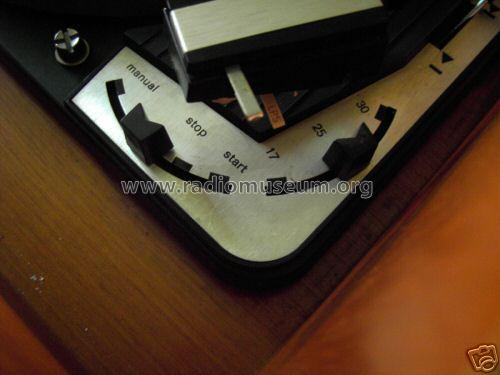

  Phono-Chassis = Dual 1010A.

• Net weight (2.2 lb = 1 kg)
• 36.5 kg / 80 lb 6.3 oz (80.396 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967

• Literature/Schematics (1)
• -- Original-techn. papers.
