• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1985

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 285417

• • Brand: Schwer & Söhne, GmbH

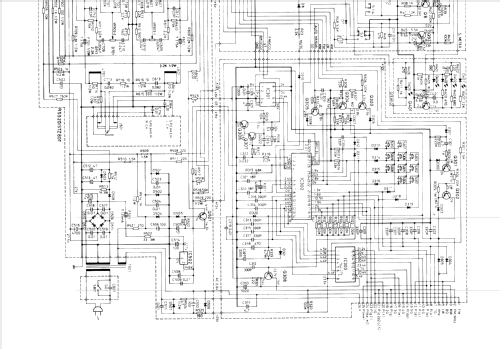

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: FM/AM Synthesizer Receiver RS 920 - SABA; Villingen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 90 x 245 mm / 17.3 x 3.5 x 9.6 inch

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
