Freiburg-Automatic 8
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21195
-
- Brand: Schwer & Söhne, GmbH
Quelle: ebay.de, #201569189144
Quelle: ebay.de, #201569189144
Ebay Nr. 6606135113

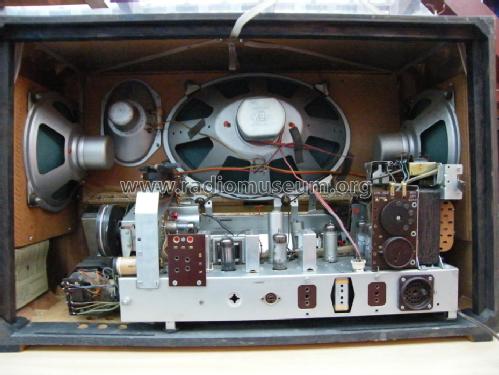

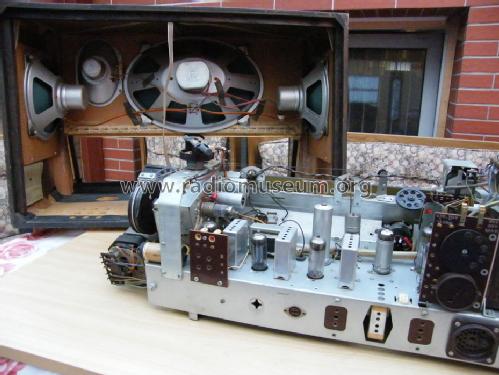

aus ebay, Verkäufer radioseller124
aus ebay, Verkäufer radioseller124
aus ebay, Verkäufer wwwmclarencarsde

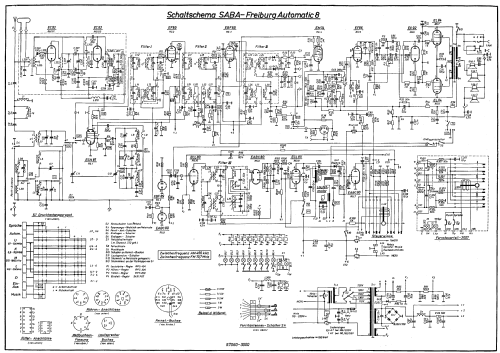

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 155; 185; 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 12 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Freiburg-Automatic 8 - SABA; Villingen
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 700 x 445 x 310 mm / 27.6 x 17.5 x 12.2 inch
- Notes
-
Siehe Fersteuerung zu diesem Modell.
Motorischer Sendersuchlauf; dreh- und abschaltbare Ferritantenne..
Abgleich (auch Steuerfilter)
Alignment (also automatic filter)Die Grosshandelskataloge 1957/58 nennen 8 AM-Kreise und 11 FM-Kreise was der tatsächlichen Kreiszahl des Empfangsteils entspricht.
In der Saba-Service-Dokumentation werden jedoch 11 AM-Kreise (davon 1 Hilfskreis) und 14 FM-Kreise genannt. Der Unterschied kommt durch die zusätzlichen Kreise der Motorsteuerung (Diskriminatorfilter) zustande. Sie werden in der allgemein üblichen Zählweise für Kreise nicht berücksichtigt, da sie für das Empfangsverhalten wie z.B. der Trennschärfe nicht von Einfluss sind.
- Net weight (2.2 lb = 1 kg)
- 22 kg / 48 lb 7.3 oz (48.458 lb)
- Price in first year of sale
- 699.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1957/58
- Mentioned in
- Handbuch RFP 1957
- Other Models
-
Here you find 1645 models, 1500 with images and 1184 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from SABA; Villingen
Collections
The model Freiburg-Automatic is part of the collections of the following members.
Forum contributions about this model: SABA; Villingen: Freiburg-Automatic 8
Threads: 4 | Posts: 8
