Fürstenberg S199 D electronic
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1967 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 327384
-
- Brand: Schwer & Söhne, GmbH

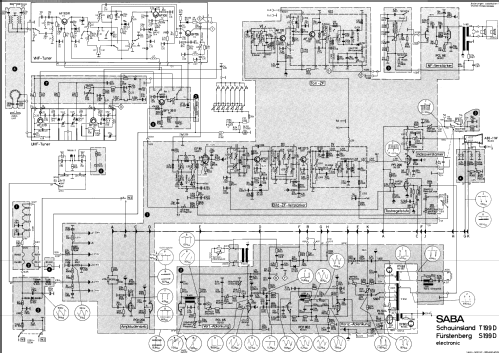

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Number of Transistors
- 10
- Semiconductors
- AF106 AF109 AF121 AF126 AF239 BF155 BF161 BFY39 AA119 AA133 AA138 BA136 BA141 BA142 BY250 V40C2 ZF12
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Fürstenberg S199 D electronic - SABA; Villingen
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 935 x 935 x 470 mm / 36.8 x 36.8 x 18.5 inch
- Notes
-
Saba, Fürstenberg S199 D electronic
- 65 cm Fernsehgerät
- Empfangsbereiche
- VHF-Bereich: Kanäle 2 - 12
- UHF-Bereich: Kanäle 21 - 68
- Lautsprecher: 2 Stück 19 x 10,5 cm.
- Antenneneingang 240 Ohm symmetrisch.
Die kabelgebundene Fernbedienung Typ FS15 enthält die Bedienelemente zum Einstellen der Lautstärke und des Helligkeit.
- Net weight (2.2 lb = 1 kg)
- 45 kg / 99 lb 1.9 oz (99.119 lb)

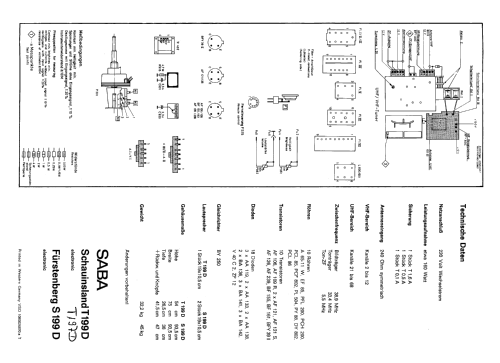

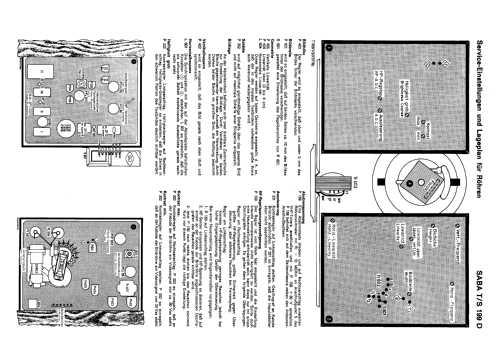

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
