• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1927/1928

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6805

• • Brand: Schwer & Söhne, GmbH

• Number of Tubes
• 4

• Valves / Tubes
• RE074n RE084 RE134 RE134

• Main principle
• TRF with regeneration; 1 Special; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

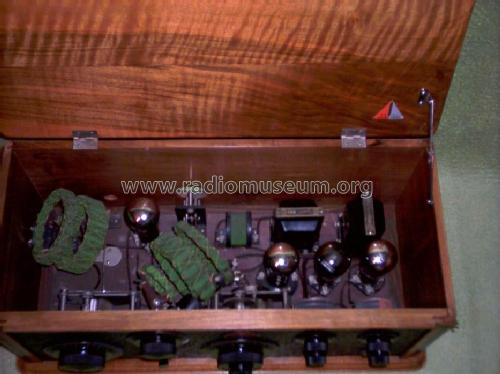

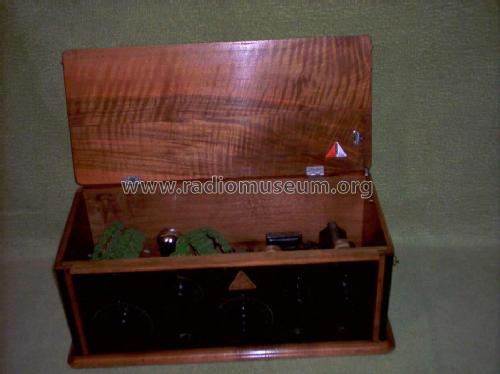

• Model: H27 - SABA; Villingen

• Dimensions (WHD)
• 560 x 230 x 270 mm / 22 x 9.1 x 10.6 inch

• Notes
• nun Bauerlaubnis=Fertiggerät HANN27

• Price in first year of sale
• 210.00 RM +

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen
