• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1977 ?

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 133134

• • Brand: Schwer & Söhne, GmbH

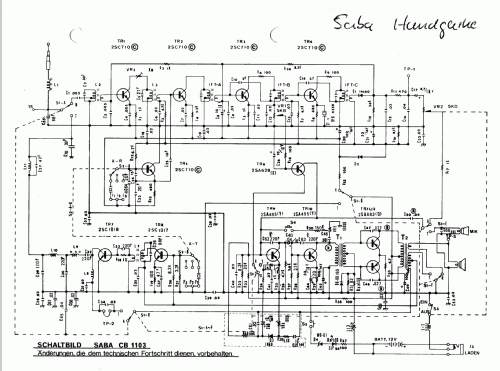

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Other Combination - see Notes

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 8 x 1,2 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (unknown quality)

• from Radiomuseum.org

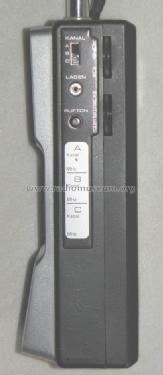

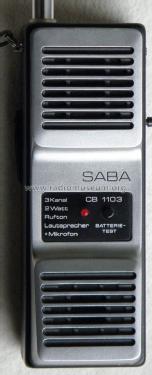

• Model: Hand-Sprechfunkgerät CB 1103 - SABA; Villingen

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• Handfunkgerät Saba CB 1103, 3 Kanal mit Quarz frei wählbar (27 MHz-Bereich), HF-Ausgangsleistung 500 mW, Empfänger mit Rauschsperre, Teleskopantenne.

  Bis auf die Frontplatte baugleich mit dem Modell DNT HF13 (gleiche Platine, gleiche Anordnung der Bedienelemente)

  Eigene Typenzulassung; FTZ Zulassungsnummer PR27-368P/77

• Mentioned in

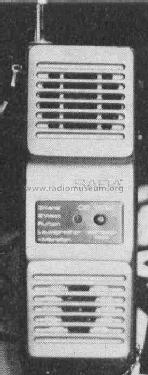

• -- Original prospect or advert (Hobyfunk CB-Radio Nr.9 1977)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
